Sungrow

Solar Inverters
sungrow

Sungrow Power Supply Co., Ltd. (“Sungrow”) is the world’s most bankable inverter brand with over 340 GW installed worldwide as of December 2022. Founded in 1997 by University Professor Cao Renxian, Sungrow is a leader in the research and development of solar inverters with the largest dedicated R&D team in the industry and a broad product portfolio offering PV inverter solutions and energy storage systems for utility-scale, commercial & industrial, and residential applications, as well as internationally recognized floating PV plant solutions, NEV driving solutions, EV charging solutions and renewable hydrogen production systems. With a strong 26-year track record in the PV space, Sungrow products power over 150 countries worldwide.

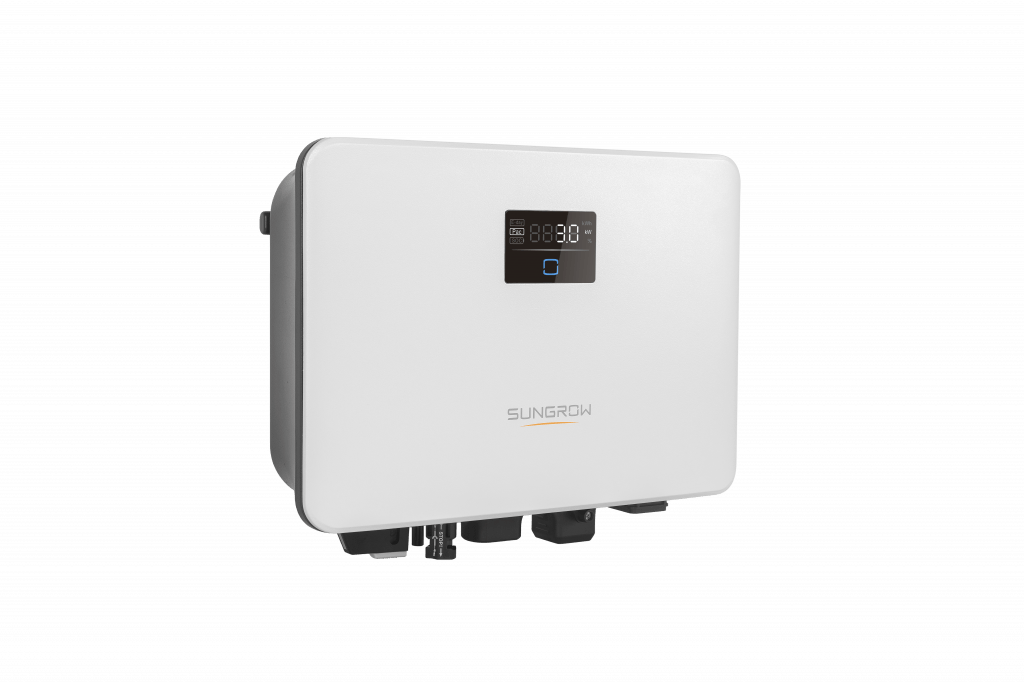

Sungrow SG2.0RS-S

Sungrow SG2.0RS-S

Single MPPT String Inverter for 600 Vdc System

  • Single-phase inverter
  • Higher yield with Max. efficiency 97.8%, European efficiency 96.9%
  • Flexible PV string configurations, DC/AC ratio up to 1.3
  • Built-in surge arresters and residual current protection
  • High anti-corrosion with aluminium alloy die casting
  • Easy local and online monitoring via App or Web
  • Export power control with smart energy meter
  • 6 kg compact design, plug and play installation
  • Fast commissioning via LCD

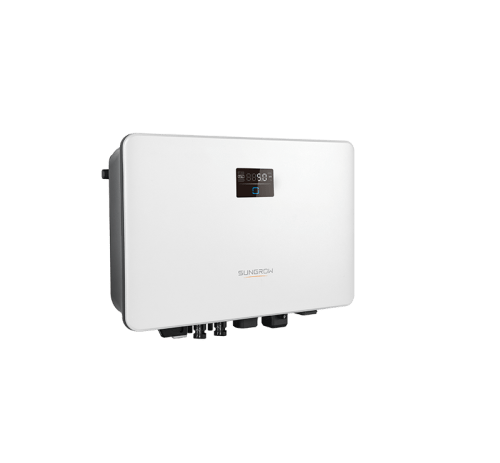

Sungrow SG3.0/5.0RS

Sungrow SG3.0/5.0RS

Double-MPPT String Inverter for 600 Vdc System

  • Higher yield with Max. efficiency 97.9%, European efficiency 97.9%
  • Flexible PV string configurations, DC/AC ratio up to 1.3
  • Built-in surge arresters and residual current protection
  • High anti-corrosion with aluminium alloy die casting
  • Easy local and online monitoring via App or Web
  • Export power control with smart energy meter
  • 10 kg compact design, plug and play installation
  • Fast commissioning via LCD

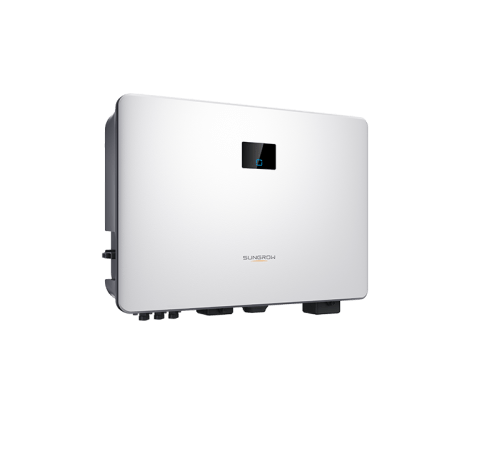

Sungrow SG5.0RS-ADASG 8.0

Sungrow SG5.0RS-ADA/SG8.0/10RS

Multi-MPPT String Inverter for 600 Vdc System

  • Compatible with high power PV modules and bifacial modules
  • Lower startup & wider MPPT voltage range
  • Built-in smart PID recovery function
  • 19 kg compact design, plug and play installation
  • One-click access to iSolarCloud monitoring platform
  • Light and compact with optimized heat dissipation design
Sungrow SG5.7.0-8.0-10RT

Sungrow SG5.0/7.0/8.0/10RT

Multi-MPPT String Inverter for 1000 Vdc System

  • Higher yield with Max. efficiency 98.4%/98.4%/98.5%/98.5%
  • Flexible PV string configurations
  • Built-in surge arresters and residual current protection
  • High anti-corrosion with aluminium alloy die casting
  • Easy local and online monitoring via App or Web
  • Export power control with smart energy meter
  • 18 kg compact design, plug and play installation
  • Fast commissioning via LCD

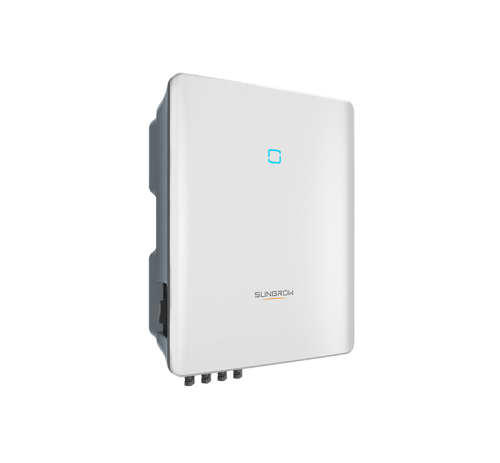

Sungrow SG15-20RT

Sungrow SG15/20RT

  • Multi MPPTs with max. efficiency 98.5%
  • Compatible with high power PV modules and bifacial modules
  • Lower startup & wider MPPT voltage range
  • Built-in smart PID recovery function
  • 21 kg compact design, plug and play installation
  • One-click access to iSolarCloud monitoring platform
  • Light and compact with optimized heat dissipation design
  • Three-phase Inverter
  • Dimensions 370 × 480 × 195 mm

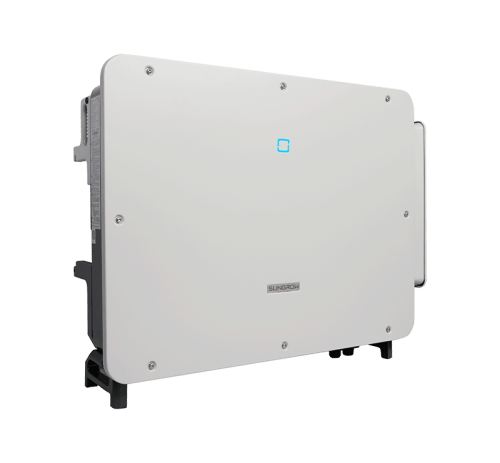

Sungrow SG110CX-P2

Sungrow SG110CX-P2

Multi-MPPT String Inverter for 1000 Vdc System

  • 12 MPPTs with max. efficiency 98.4%
  • DC 30A MPPT current input, compatible with over 600W+ PV module
  • Compatible max. 240mm² Al AC cables
  • Drawer-style cable sealing plate support AC cable pre-assembly
  • Key component diagnosis and protection
  • Smart IV Curve Diagnosis
  • Grid fault record function, easy for remote O&M
  • IP66 protection and C5 Anti-corrosion
  • DC Type I+II SPD, AC Type II SPD
  • Support AFCI 2.0 function
Sungrow SG30CX-P2

Sungrow SG50CX-P2

Multi-MPPT String Inverter for 1000 Vdc System

  • Multi MPPTs with max. efficiency 98.5%
  • DC 15A current input, compatible with over 500W+ PV module
  • Dynamic shading optimization mode
  • Built-in PID recovery function
  • Easy to handle thanks to 34% weight reduced
  • Plug and Play with Buckle Design
  • Key component diagnosis and protection
  • Smart IV Curve Diagnosis
  • Grid fault record function, easy for remote O&M
  • IP66 protection and C5 Anti-corrosion
  • DC Type I+II SPD, AC Type II SPD
  • Support AFCI 2.0 function

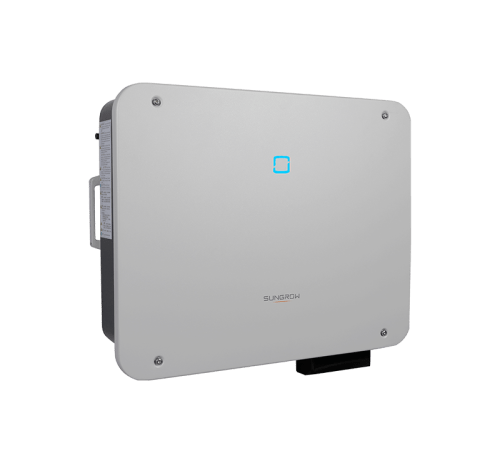

Sungrow SG30CX-P2

Sungrow SG30CX-P2

Multi-MPPT String Inverter for 1000 Vdc System

  • Multi MPPTs with max. efficiency 98.5%
  • DC 15A current input, compatible with over 500W+ PV module
  • Dynamic shading optimization mode
  • Built-in PID recovery function
  • Easy to handle thanks to 34% weight reduced
  • Plug and Play with Buckle Design
  • Key component diagnosis and protection
  • Smart IV Curve Diagnosis
  • Grid fault record function, easy for remote O&M
  • IP66 protection and C5 Anti-corrosion
  • DC Type I+II SPD, AC Type II SPD
  • Support AFCI 2.0 function
