Solax Power has become a globally-recognised solar inverter company, operating in the UK, Netherlands, Germany, Australia and the USA. The company is developed by a strong R&D team, and SolaX Power is proud to be affiliated with the Zhejiang University, one of the leading research universities in China and home to the only national silicon material laboratories in China’s ‘Silicon Valley’. SolaX products are committed to be designed, tested and manufactured to the highest global standards. Until now, their products were exported to 66 countries via 200 distribution channels.

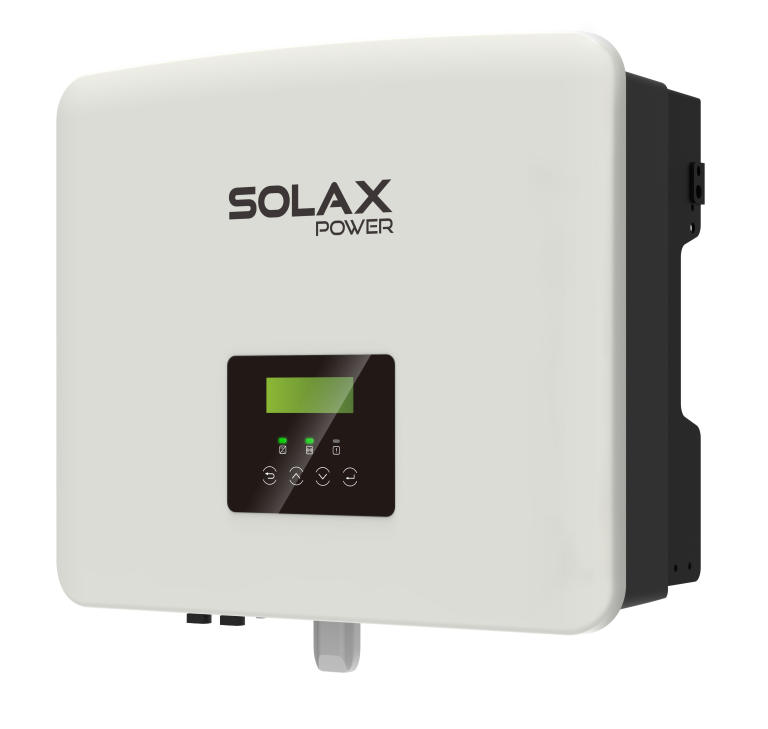

X1-HYBRID G4
D: Should be used without matebox
M: Should be used with matebox
SINGLE-PHASE
3.0~7.5kW
Features
High-efficient
- 200% PV oversized and up to 110% AC overload output
- Higher efficiency on charging and discharging, up to 97.0%
- Built-in shadow tracking function
Economic
- 16A DC input current, support high power solar panel
- Up to 150% PV input
- Store the surplus energy from PV to battery
- Low start output voltage makes inverter longer working time
- Less energy loss on battery to inverter
Intelligent
- 150% EPS output, 10s
- Switchover time <10ms
- Quick configuration with U-disk
- Lithium-ion & Lead-acid battery compatible
- CT compatible, loads respond within 0.3s
- Intelligent loads management (e.g., Heat pump)
- On & Off-grid parallel function, up to 15kW
- 5 work modes, 2 charging periods available
- VPP ready, ancillary service in power market
Safe
- IP65 protection level
- Integrated SPD

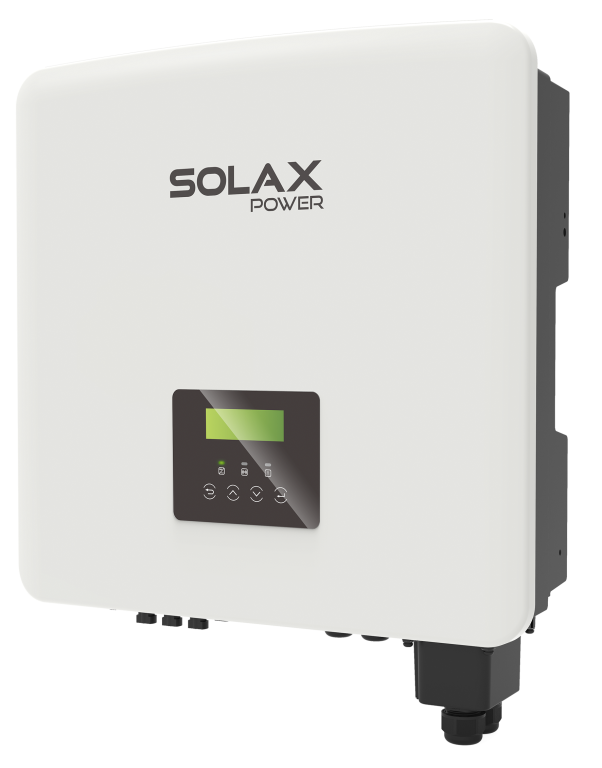

X3-Hybrid G4
D: Should be used without matebox
M: Should be used with matebox
THREE-PHASE
HYBRID INVERTER
5.0~15kW
Features
High-efficient
- 200% PV oversized and up to 110% AC overload output
- Higher efficiency on charging and discharging, up to 97.5%
- Built-in shadow tracking function
Economic
- 16A DC single string input current, support high power solar panel
- Up to 150% PV input
- Store the surplus energy from PV to battery
- Low start output voltage makes inverter longer working time
- Less energy loss on battery to inverter
- Dual peak limit value, flexible optimization of electricity bills
Intelligent
- 150% EPS overload output for 10s
- Switchover time <10ms
- Quick configuration with U-disk
- Lithium-ion & Lead-acid battery compatible
- CT compatible, loads respond within 0.3s
- Intelligent loads management (e.g., Heat pump)
- On & Off-grid parallel function, up to 150kW
- 5 work modes, 2 charging periods available
- VPP ready, ancillary service in power market
- Three-phase unbalanced output Maximum 5kW output power on single phase at most
- Super-backup ready, EPS operation without batteries
Safe
- IP65 protection level
- Integrated SPD

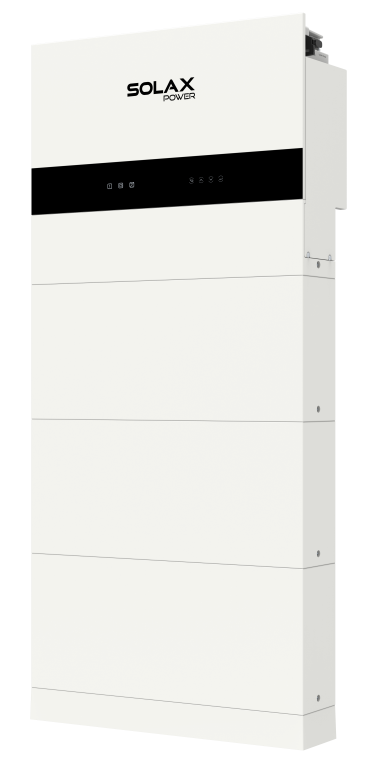

X1-IES / X3-IES
SINGLE-PHASE
X1-IES:3kW/3.7kW/4.6kW/5kW/6kW/8kW
X3-IES:5kW/6kW/8kW/10kW/12kW/15kW
Features
Economic
- All in one design, plug and play, expandable and installation easily
- Maximum 200% oversize and 200% PV input power
- Maximum 20A DC single string input current, support high power solar panel
- Low start output voltage makes inverter longer working time
- Built-in shadow tracking function
- Maximum Charge / Discharge Current up to 50A
Robust
- Robust back-up ability, switchover time ＜10ms(UPS level), up to 200% EPS output for 10s
- Battery heating technology, -30°C extreme environment operation
Safe
- IP66 protection level
- AC&DC SPD type II, always guarding the inverter
- AFCI optional
Intelligent
- AI ready, forecasting solar generation and home consumption, smart energy management strategy
- VPP ready, SolaX cloud support resource aggregator(IEEE 2030.5, OpenADR )
- Micro-grid ready, supporting real-time power balance between PCS and Hybrid in grid-connected and off-grid scenarios.
- Support smart scene function, intelligent loads management(e.g., Heat pump, EV charger)
- Support 7×24h scheduling mode
- Support Wireless meter solution
X3-ULTRA
Three-phase Hybrid Inverter
Commercial & Industrial Hybrid Solution
Economic
- Maximum 200% oversize and 200% PV input power
- Maximum 36A input current per MPPT, support high power solar panel
Intelligent
- AI ready, forecasting solar generation and home consumption, smart energy management strategy
- VPP ready, SolaX cloud supports resource aggregator (2030.5, OpenADR )
- Support smart scene function, intelligent loads manage ment(e.g., Heat pump，EV charger)
- Micro-grid ready, supporting a variety of scenarios, both on-grid and off-grid, balancing power between PCS and Hybrid in real time
- Support 7×24h scheduling mode
- Support Wireless meter solution
- Dual independent battery ports are ready to expand battery capacity free
Robust
- Robust back-up ability, switch over time ＜10ms, up to 200% EPS output for 10s, support half-wave loads
- Stronger, EPS operation without battery
Safe
- IP66 protection level
- AC&DC SPD type II, always guarding the inverter
- AFCI optional

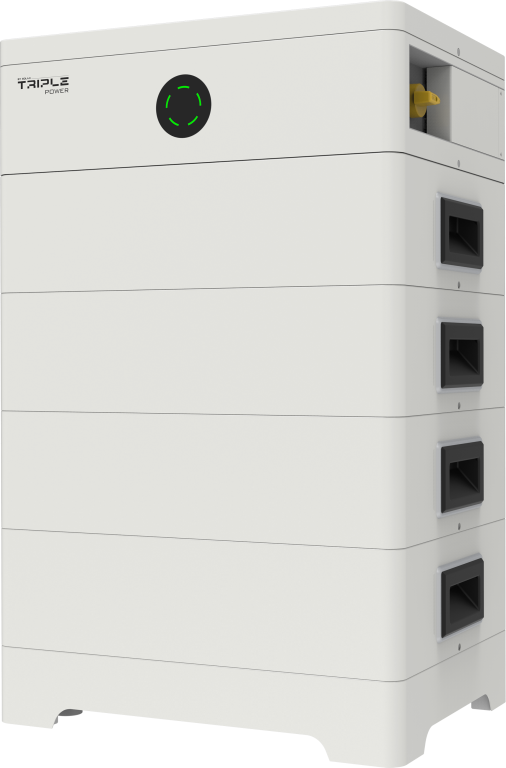

T-BAT-SYS-HV-S3.6
T-BAT HS7.2/T-BAT HS10.8/T-BAT HS14.4
T-BAT HS18.0/T-BAT HS21.6/T-BAT HS25.2
T-BAT HS28.8/T-BAT HS32.4/T-BAT HS36.0
T-BAT HS39.6/T-BAT HS43.2/T-BAT HS46.8
Features
High-Performance
- Max. 50A continuous charging and discharging current
- Unique battery heating technology, which is capable to work at low temperature
Safe and Reliable
- Reliable LFP battery cell
- IP65 for both indoor and outdoor installation
- Soft start protecting batteries and inverters from a sudden surge
- Cycle life > 6000 times
Flexibility
- 7.3-47.9kWh Wide capacity range
- Extendable during lifetime
Easy Installation
- Stackable modules, Easy and fast for single person installation
- Pre-wired communication cables for plug and play
- Remote diagnosis and update via inverter

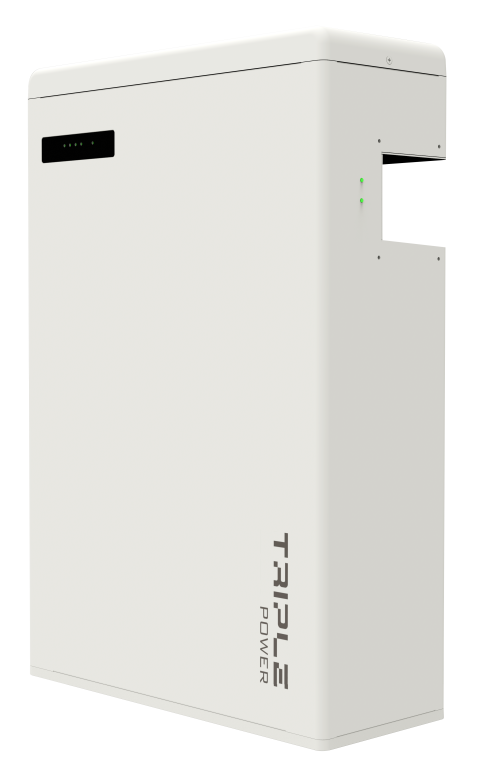

T-BAT-SYS-HV-5.8
- Safest LiFePO4 battery
- 90% DOD
- Cycle life>6000 times
- IP65 protection level
- Floor or wall mounting
- Less self consumption
- Quick installation
- No toxic heavy metals or caustic materials
