Sungrow

Solar Inverters


Sungrow Power was founded in 1997 and remains to be one of the global leaders in manufacturing solar PV inverters. The company manufactures solar power supply equipment for residential, commercial as well as utility-scale PV projects. After 15 years of experience in the inverter market, Sungrow owns 40% market share in China, and become the only public-listed inverter company in the Asia Pacific. In 2013, Sungrow was the second-largest PV inverter manufacturer around the globe by MW shipped, with over 14 GW installed. While committing to deliver high quality products, the company has won several awards and all products are certified to international standards, including an “A” grade rating in the prestigious Photon Lab tests.

Sungrow SG2K/3K-S

  • Single-phase inverter
  • Higher yield with Max. efficiency 98.2%, European efficiency 97.7%
  • Flexible PV string configurations, DC/AC ratio up to 1.3
  • Built-in surge arresters and residual current protection
  • High anti-corrosion with aluminium alloy die casting
  • Easy local and online monitoring via App or Web
  • Export power control with smart energy meter
  • 8.5 kg compact design, plug and play installation
  • Fast commissioning via LCD

Sungrow SG3K/5K-D Premium

  • Single-phase inverter
  • Higher yield with Max. efficiency 98.4%, European efficiency 98.0%
  • 12.5A MPPT current, and compatible with bifacial modules
  • Flexible PV string configurations, DC/AC ratio up to 1.4
  • Quick Arc Fault Circuit Interrupter
  • Built-in Type II DC AC surge protection device
  • Built-in certified PV isolator
  • 24H real-time loads monitoring
  • Easy local and online monitoring via App or Web
  • 11.5 kg compact design, plug and play installation
  • Fast commissioning via App

Sungrow SG8K-D

  • Single-phase inverter
  • Higher yield with Max. efficiency 98.5%, European efficiency 98.0%
  • Flexible PV string configurations, DC/AC ratio up to 1.3
  • Built-in surge arresters and residual current protection
  • High anti-corrosion with aluminium alloy die casting
  • Easy local and online monitoring via App or Web
  • Export power control with smart energy meter
  • 15.5 kg compact design, plug and play installation
  • Fast commissioning via LCD

Sungrow SG5KTL-MT

  • Three-phase inverter
  • High energy yield due to maximum efficiency up to 98.1%
  • Flexible design due to dual MPP tracking that is equipped to obtain full nominal power
  • Low noise level and internal consumption due to natural cooling
  • Integrated theft protection
  • Access to Home WiFi system and enjoy cloud services via smart phones
  • Integrated power management function, easy to receive the adjustable command from grid
  • Extensive communication, RS-485, Ethernet, WLAN/WiFi, 4 digital inputs for ripple control receivers

Sungrow SG5.0-20RT

  • Three-phase inverter
  • Lower startup & wider MPPT voltage, compatible with bifacial modules
  • Compact design with unique push-in connectors
  • Fast and easy commissioning via App
  • Quick arc fault circuit interrupter, Build-in PID recovery function
  • Build-in Type II DC & AC SPD
  • High anti-corrosion rating C5
  • Smart IV curve scanning, 24/7 Live monitoring, remote firmware updates

Sungrow SH10.0RT Hybrid Inverter

  • Supports parallel connection with full communication between inverters
  • Provides 100% unbalanced loads in backup mode
  • Seamless transition to backup mode for protection against power outages
  • High self-consumption with optimized built-in EMS
  • Free online monitoring to enhance energy management for end users, installer and retailer
  • Remote firmware updates and customizable settings
  • Fast charging/discharging to meet the demand of higher consumption and energy trading
  • Unique push-in connectors for time-saving installation
  • Touch free commissioning with smartphone
  • Lightweight and compact

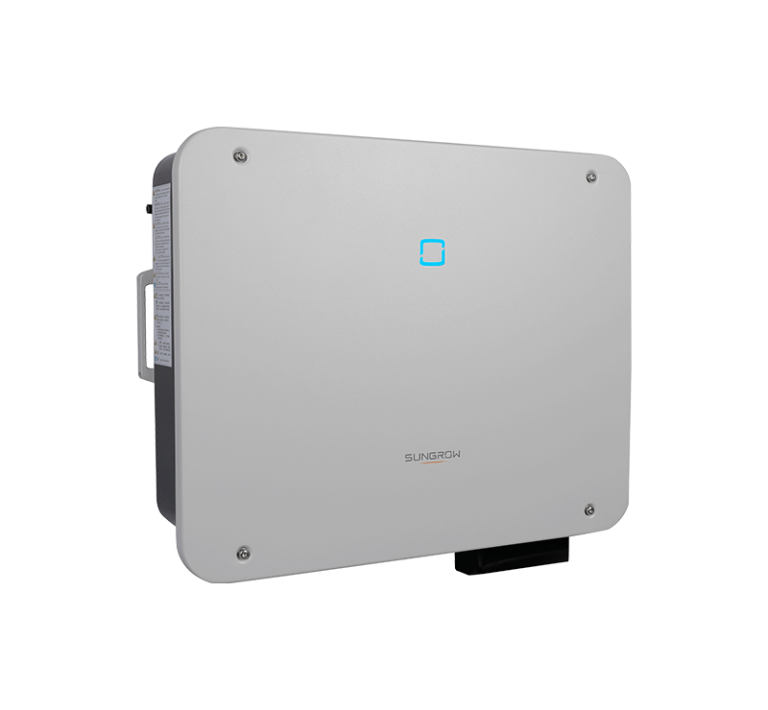

Sungrow SG30CX Premium

  • 3 MPPTs with max. efficiency 98.6%
  • Compatible with bifacial module, Built-in PID recovery function
  • Touch free commissioning and remote firmware upgrade
  • Online IV curve scan and diagnosis
  • Fuse free design with smart string current monitoring
  • Compatiblen with AI and Cu AC cables
  • DC 2 in 1 connection enabled
  • Cable free communication with optional Wi-Fi
  • IP66 and C5 anti-corrosion grade
  • Type II SPD for both DC and AC

Sungrow S100 Smart Meter

  • Single-phase smart meter
  • 100 Amps, 240 volts
  • Central inverter management
  • Automated reports, multidimensional analysis, and accurate positioning of faults
  • Quick troubleshooting to quickly resolve faults and avoid downtimes
  • Certified data security
  • Redundant data storage
