Solax

Solax Power has become a globally-recognised solar inverter company, operating in the UK, Netherlands, Germany, Australia and the USA. The company is developed by a strong R&D team, and SolaX Power is proud to be affiliated with the Zhejiang University, one of the leading research universities in China and home to the only national silicon material laboratories in China’s ‘Silicon Valley’. SolaX products are committed to be designed, tested and manufactured to the highest global standards. Until now, their products were exported to 66 countries via 200 distribution channels.

X1-MINI G4

SINGLE-PHASE
ON-GRID INVERTER
0.6~3.3kW

Features

Upgraded Performance

• DC Input: 200% oversizing, 16A current, ultra wide
  MPPT voltage range
• In-built global MPP scan for higher yields

Advanced Safety

• AC/DC built-in Type II SPD (Optional) and I-V curve diagnosis supported
• Support external Rapid Shutdown device (RSD)
• Optional ARC detection (AFCI)
• Built-in export control function

Flexible Adaptability

• Adapt to Home EV Charger Solution
• Mass management and broad extension via Datahub
• Extendable parallel solution via Modbus supported

Optimized Monitoring

• 10s level interval of data update(Optional, new
  WiFi dongle required)
• Multiple interfaces for presenting data

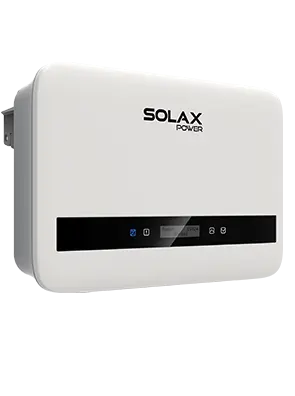

X1-BOOST G4

SINGLE-PHASE
ON-GRID INVERTER
2.5~6kW

Features

Superior Performance

• DC Input: 200% oversizing, 16A current, 50V startup voltage
• In-built global MPP scan for higher yield efficiency

User Friendly Monitoring

• 10s level interval of data update(Optional, new WiFi dongle required)
• Quick and easy configuration (WiFi&APP)

Assured Safety & Reliability

• AC/DC built-in Type II SPD (Optional) and I-V curve diagnosis supported
• Optional external RSD (Rapid Shutdown) and integrated DC AFCI protection (Optional)
• In-built export control function

Superb Adaptability

• Home EV Charger and Heat Pump Solution adaptable
• Mass management and broad extension via Datahub
• Master/Slave parallel solution via Modbus supported

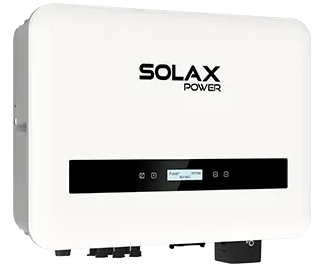

X1-SMART G2

SINGLE-PHASE
ON-GRID INVERTER
5~10kW

Features

Advanced performance

• 3 MPP trackers for multi-orientation installation
• Max. PV input current 20A compatible with advanced high-power panels
• 200% PV oversizing, and 110% AC overloading

User-friendly O&M

• Super convenient and quick plug-play communication terminal
• Aluminum AC wires supported
• 10s data refresh interval with new Cloud interface
• 24h consumption monitoring

Adaptable and Multifunctional

• Multiple units in parallel for larger system
• Global MPP scan to yield more
• Fast I-V curve scan and report for earlier panel issue diagnosis
• Home EV Charger and Heat Pump Solution adaptable

Robust safety protection

• Optional external RSD (Rapid Shut Down) and integrated DC AFCI protection (Optional)
• DC/AC both sides SPD2 protection (Optional modules to meet certification IEC/EN61643)
• Support 2030.5 and flexible control

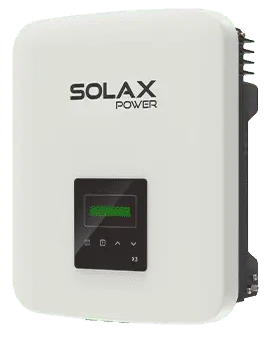

X3-MIC G2

THREE-PHASE
ON-GRID INVERTER
5~8kW

Features

High-Efficiency

• Maximum efficiency is up to 98.5%
• Low startup voltage, ultrawide MPPT voltage range
• 150% DC oversizing, 110% AC overloading output
• In-built global MPP scan for higher yield efficiency

Safe

• SPD type II protection on both AC&DC
• ARC protection (Optional)
• IP66 protection

Smart

• Built-in export power control
• Intelligent load management – heat pump (Adapter Box required)
• Monitoring and maintenance (Optional)
• Multiple monitoring methods supported, Optional: WiFi/LAN/4G

Economic

• Ultra-high power density
• Maximum 32A DC input current per MPP tracker, support high power solar panels
• Up to 3 MPPTs, 2 strings per MPPT
• Support Master/Slave parallel function

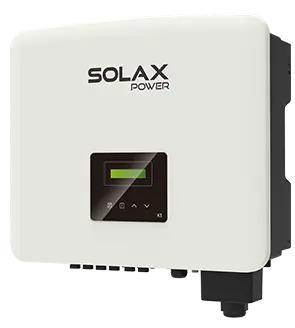

X3-PRO G2

THREE-PHASE
ON-GRID INVERTER
8~30k

Features

High-Efficiency

• Maximum efficiency is up to 98.5%
• Low startup voltage, ultrawide MPPT voltage range
• 150% DC oversizing, 110% AC overloading output
• In-built global MPP scan for higher yield efficiency

Safe

• SPD type II protection on both AC&DC
• ARC protection (Optional)
• IP66 protection

Smart

• Built-in export power control
• Intelligent load management – heat pump (Adapter Box required)
• Monitoring and maintenance (Optional)
• Multiple monitoring methods supported, Optional: WiFi/LAN/4G

Economic

• Ultra-high power density
• Maximum 32A DC input current per MPP tracker, support high power solar panels
• Up to 3 MPPTs, 2 strings per MPPT
• Support Master/Slave parallel function

X3-MEGA G2

THREE-PHASE
ON-GRID INVERTER
40~60kW

Features

More energy harvest

• Maximum efficiency 98.4%
• 180~1000Vdc MPPT voltage range
• Maximum 6 MPPTs, 2 strings per MPP tracker
• 150% PV oversizing input, 110% overloading output
• Maximum 32A MPPT current

Safety & Reliability

• IP66 protection level
• AFCI protection (Optional)
• Both AC&DC SPDs(Type II) inside, Type I+II SPD is optional

Intelligence for easy maintenance and economy

•  Built-in export power control
• Remote setting and upgrading
• Smart I-V Curve Diagnosis supported
• Aluminium AC cable connection available
• Fuse free design with smart string current monitoring
• Night-time reactive power compensation
• 24 hours operation monitoring (Optional)
• Smart air cooling technique results in long lifetime of fans
• Advanced heat dissipation technology makes the system more than 10% lighter and smaller

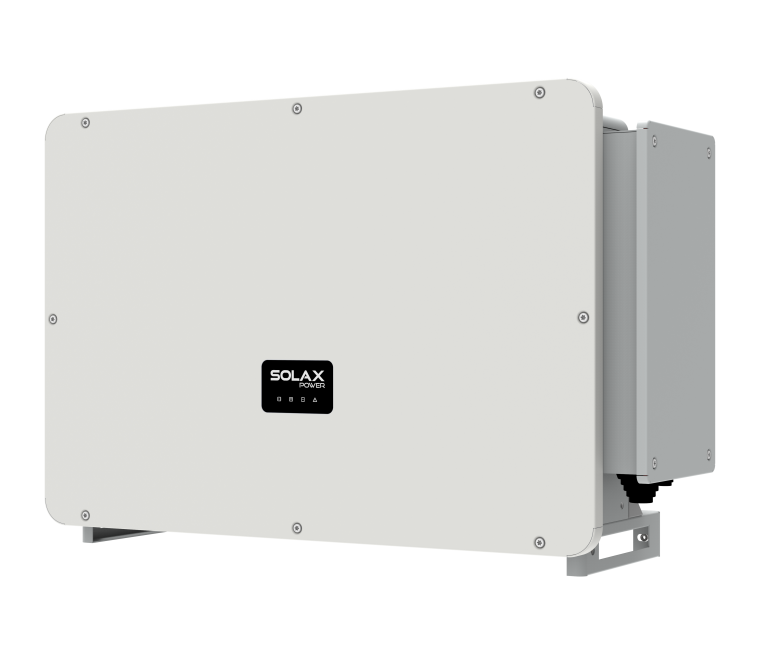

X3-FORTH

THREE-PHASE
ON-GRID INVERTER
80~150kW

Features

More energy harvest

• Maximum efficiency up to 99%
• 180~1000Vdc MPPT voltage range
• Maximum 12 MPPTs, 2 strings per MPP tracker
• 150% PV oversizing input, 110% overloading output
• Maximum 32A MPPT current

Safety & Reliability

• IP66 protection level
• AFCI protection (Optional)
• AC terminal temperature detection
• Both AC&DC SPDs(Type II) inside, Type I+II SPD is optional

Intelligence for easy maintenance and economy

• Built-in export power control
• Remote setting and upgrading
• 24 hours operation monitoring
• Smart I-V Curve Diagnosis supported
• Night-time reactive power compensation
• Aluminium AC cable connection available
• Power line communication (PLC)(Optional)
• Fuse free design with smart string current monitoring
• Smart air cooling technique results in long lifetime of fans
• Advanced heat dissipation technology makes the system more than 5% lighter and smaller
