APsystems was founded in Silicon Valley in 2009 and is ranked No.2 in global market share among the top microinverter manufacturers. The company offers advanced, powerful solar microinverter technology for residential and commercial systems. Their products have been rapidly installed across Australia including all major centres – Sydney, Melbourne, Brisbane, Canberra, Perth, Adelaide, Darwin, Hobart and regional locations. Remarkable innovation keeps APsystems microinverters ahead of the competition, and become the smartest microinverter on the market today – and tomorrow.

APsystems YC600 Single-Phase 230V AC-50 Microinverter

  • Single unit connects two solar modules
  • 2 input channels with independent MPPT and monitoring function
  • Designed with Reactive Power Control (RPC) technology
  • Maximum continuous output power up to 550VA. Peak output power up to 600VA
  • Auto disconnection device integrated
  • Adjustable output power factor
  • Compatible with most 60/72 cell solar modules
  • Up to 9 YC600’s (18 solar modules) can be installed on a single circuit
  • Provides individual module maximum power point tracking
  • Easy and quick to install
  • Standard 10-year and optional 25-year manufacturer’s warranty

Download Datasheet

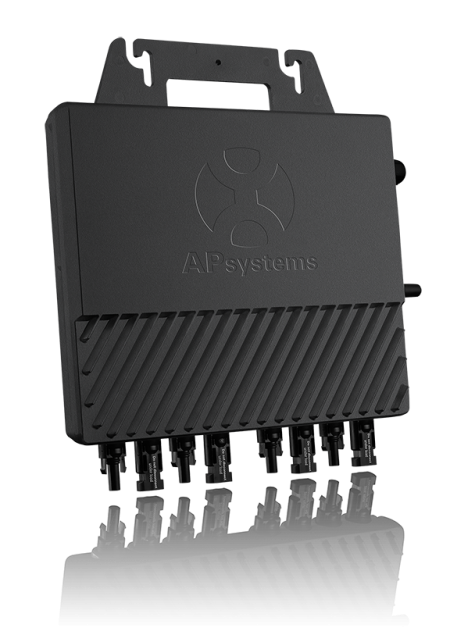

APsystems QS1 Single-Phase 230V AC-50 Microinverter

  • Single unit connects up to four solar modules
  • 4 input channels with independent MPPT and monitoring function
  • Maximum continuous output power up to 1200WAC
  • Auto disconnection device integrated
  • Adjustable Reactive Power Control (RPC) (0.7 leading and 0.7 lagging)
  • Reduced labor costs of installation with its innovative four-for one design
  • 300% faster installation than conventional microinverters
  • Accommodates PV panels up to 375W
  • Standard 10-year and optional 20-year manufacturer’s warranty

Download Datasheet

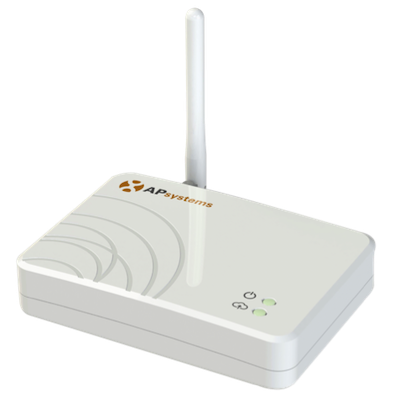

APsystems ECU-R 230V AC-50 Zigbee

  • Information gateway for APsystems microinverters
  • Collects performance data from each individual module and inverter
  • Transfers information to an Internet database in real time
  • Requiring only a single data and power, no additional wiring
  • Precise analysis of each inverter and module through APsystems Energy Monitoring and Analysis Software
  • WiFi integrated
  • User-friendly interface

Download Datasheet

APsystems ECU-C AC-50 Zigbee

  • Information gateway for APsystems microinverters
  • Collects performance data from each individual module and inverter
  • Transfers information to an Internet database in real time
  • Export control, relay control
  • Precise analysis of each inverter and module through APsystems Energy Monitoring and Analysis Software
  • WiFi integrated
  • Revenue grade meter
  • Rapid shutdown control ECU-C

Download Datasheet
